Moto Coil Winding Machine
Winma-L500
| Winma-L500 | |
|---|---|
| Swing Diameter | 300mm |
| Wire Size | 35 - 19 SWG |
| Bobbin Width | 500mm |
| Speed | 900 RPM |
| Power | 230VAC, 0.82KW |
| Tri-Filer | 1 x 1 x 1 mm |
| Single or double wire guide | |
Winma-L600
| Winma-L600 | |
|---|---|
| Swing Diameter | 500mm |
| Wire Size | 35 -19 SWG |
| Bobbin Width | 600mm |
| Speed | 500 RPM |
| Power | 230VAC, 1.7KW |
| Single or double wire guide | |
Winma-L600 Gear
| Winma-L600 Gear | |
|---|---|
| Swing Diameter | 500mm |
| Wire Size | 35 - 10 SWG |
| Bobbin Width | 600mm |
| Speed | 180 RPM |
| Power | 230VAC, 1.7KW |
| Single wire guide | |

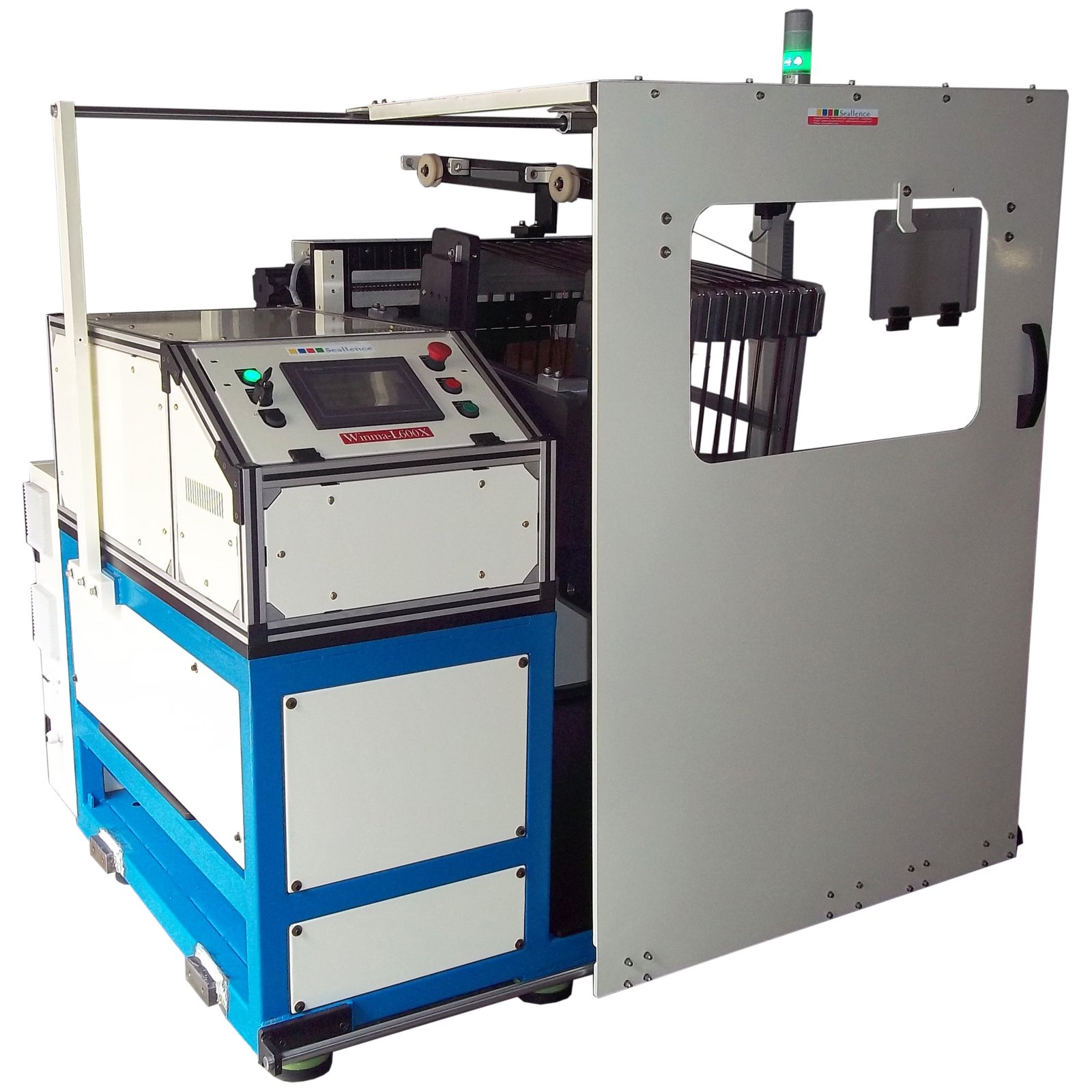

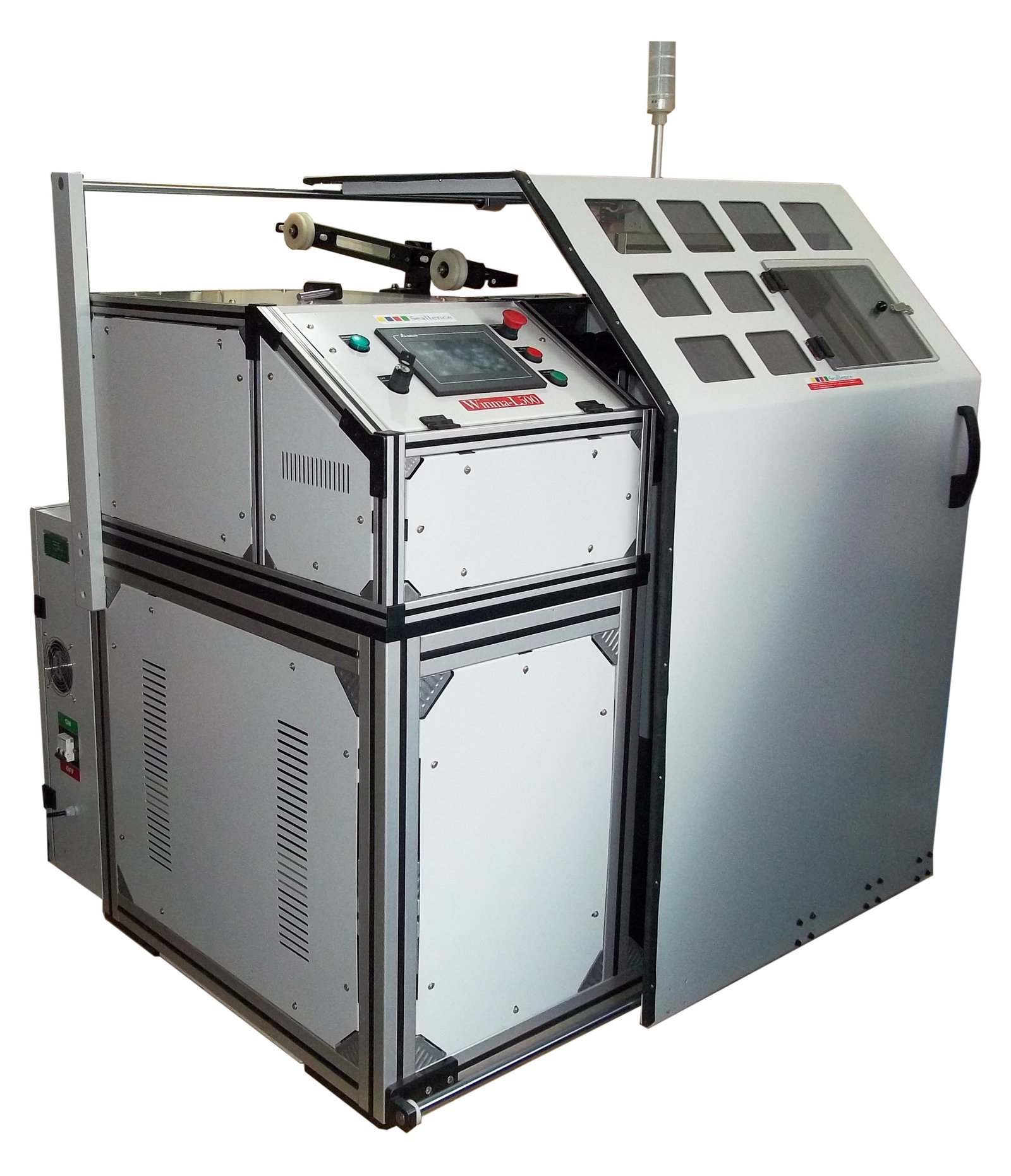

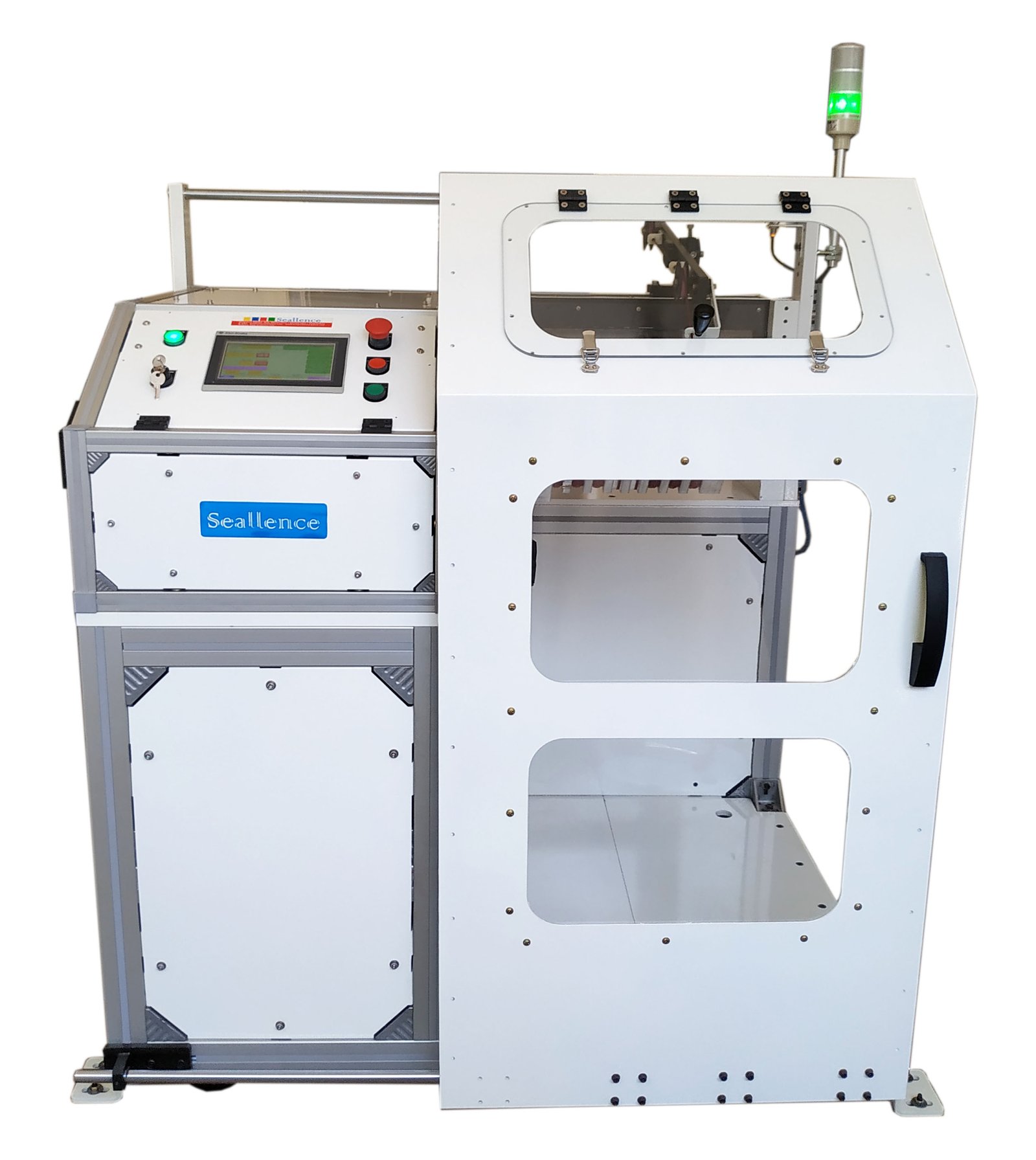

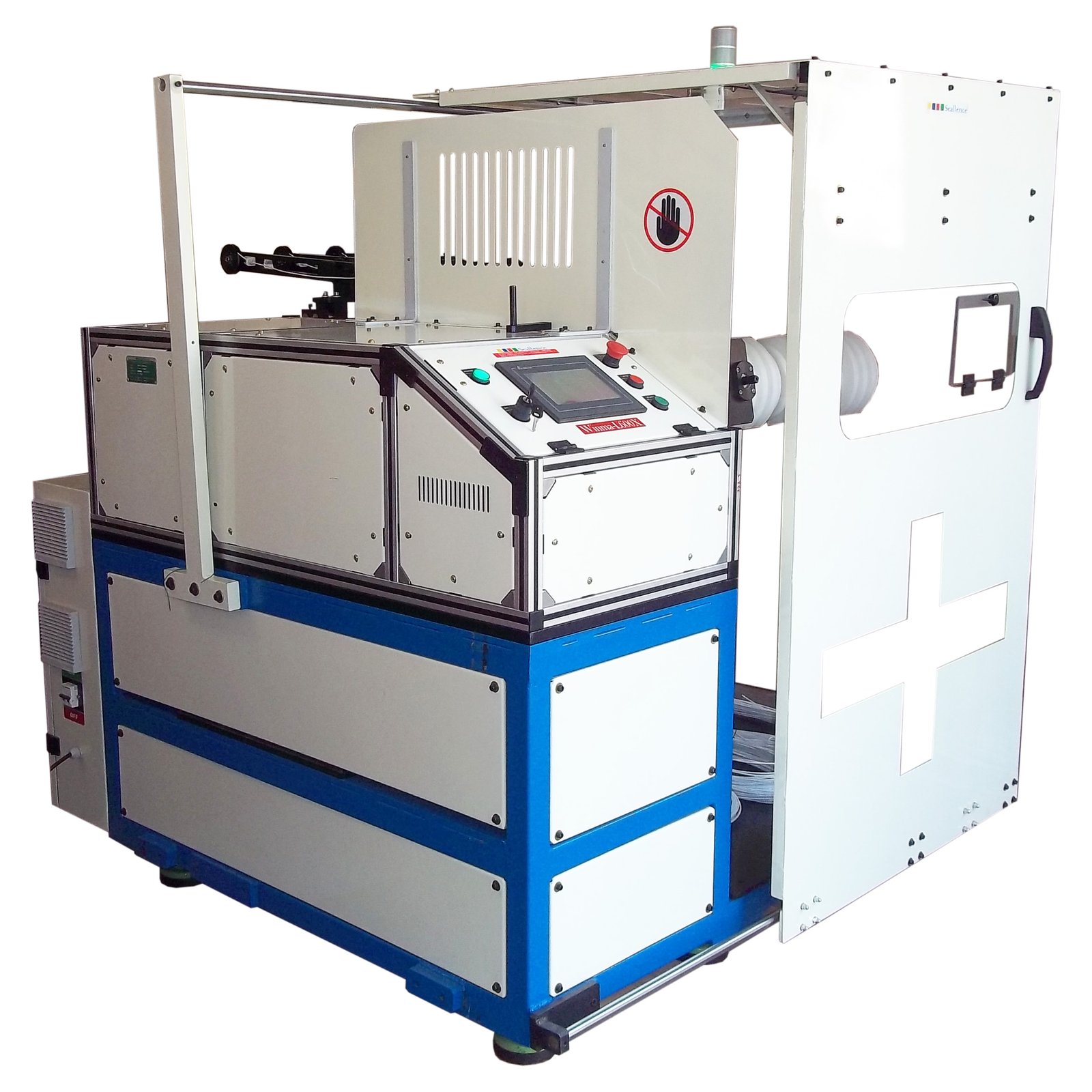

Winma-L400X
| Winma-L400X | |
|---|---|
| Swing Diameter | 500mm |
| Wire Size | 1mm 8 wires |
| former With | 400mm |
| Speed | 160 - 180 RPM |
| Power | 230VAC, 1.7KW |
| wire guide | 1 or 2 or 3 |
Winma-L400XX
| Winma-L400XX | |
|---|---|
| Swing Diameter | 600mm |
| Wire Size | 1mm 10 wires |
| former With | 400mm |
| Speed | 120 - 140 RPM |
| Power | 230VAC, 1.7KW |
| wire guide | 1 or 2 or 3 |

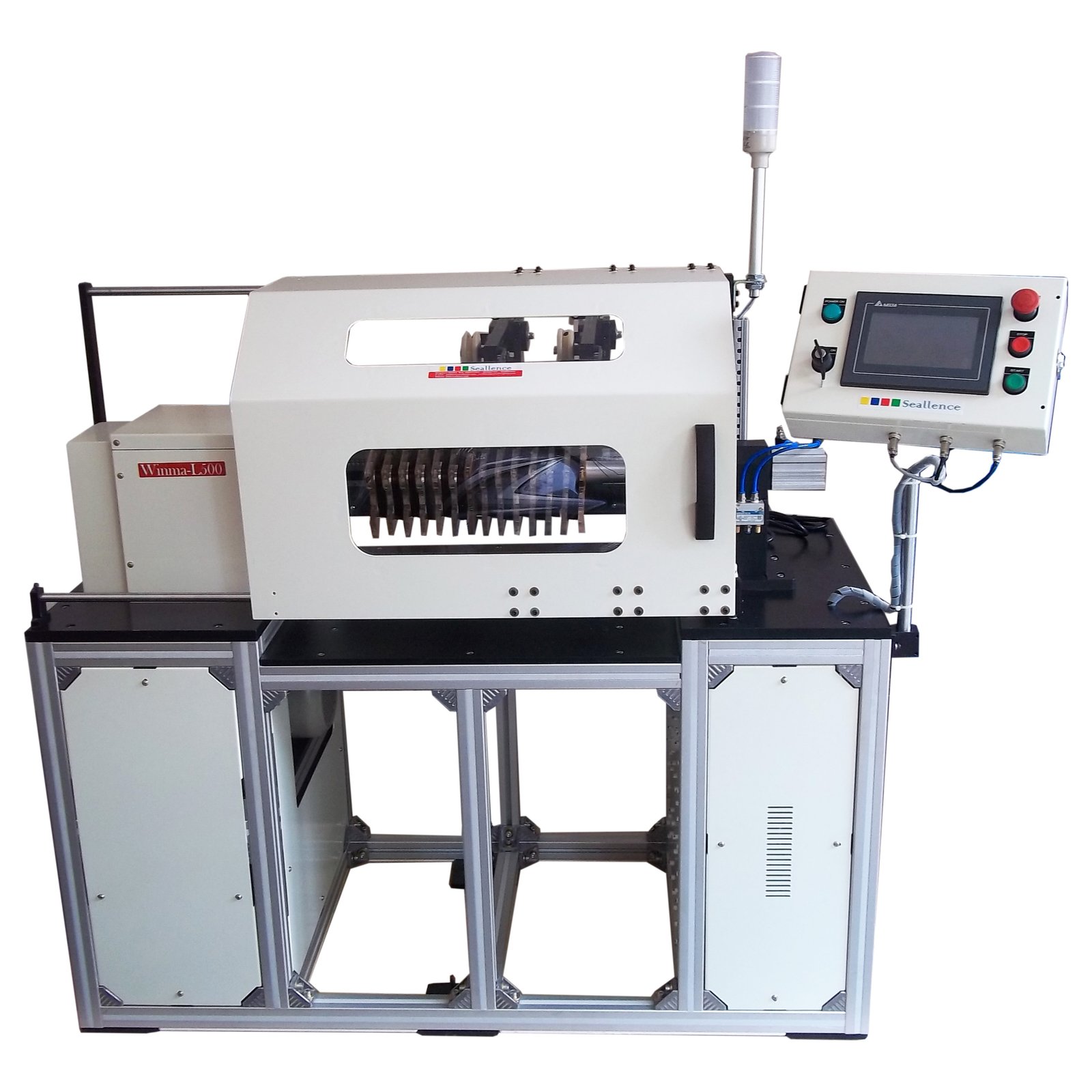

Winma-L500X
| Winma-L500X | |
|---|---|
| Swing Diameter | 400mm |
| Wire Size | 1mm 8 wires |
| former With | 500mm |
| Speed | 250 - 400 RPM |
| Power | 230VAC, 1.7KW |
| wire guide | 1 or 2 or 3 |
Winma-L600X
| Winma-L600X | |
|---|---|
| Swing Diameter | 600mm |
| Wire Size | 1mm 20 wires |
| Former Width | 400mm |
| Speed | 70 - 90 RPM |
| Power | 230VAC, 2.5KW |
| Wire guide | 1 |
Winma-L1000X
| Winma-L1000X | |
|---|---|
| Swing Diameter | 1000mm |
| Wire Size | 1mm 8 wires |
| Former Width | 400mm |
| Speed | 70 - 90 RPM |
| Power | 230VAC, 2.5KW |
| Wire guide | 1 or 2 |

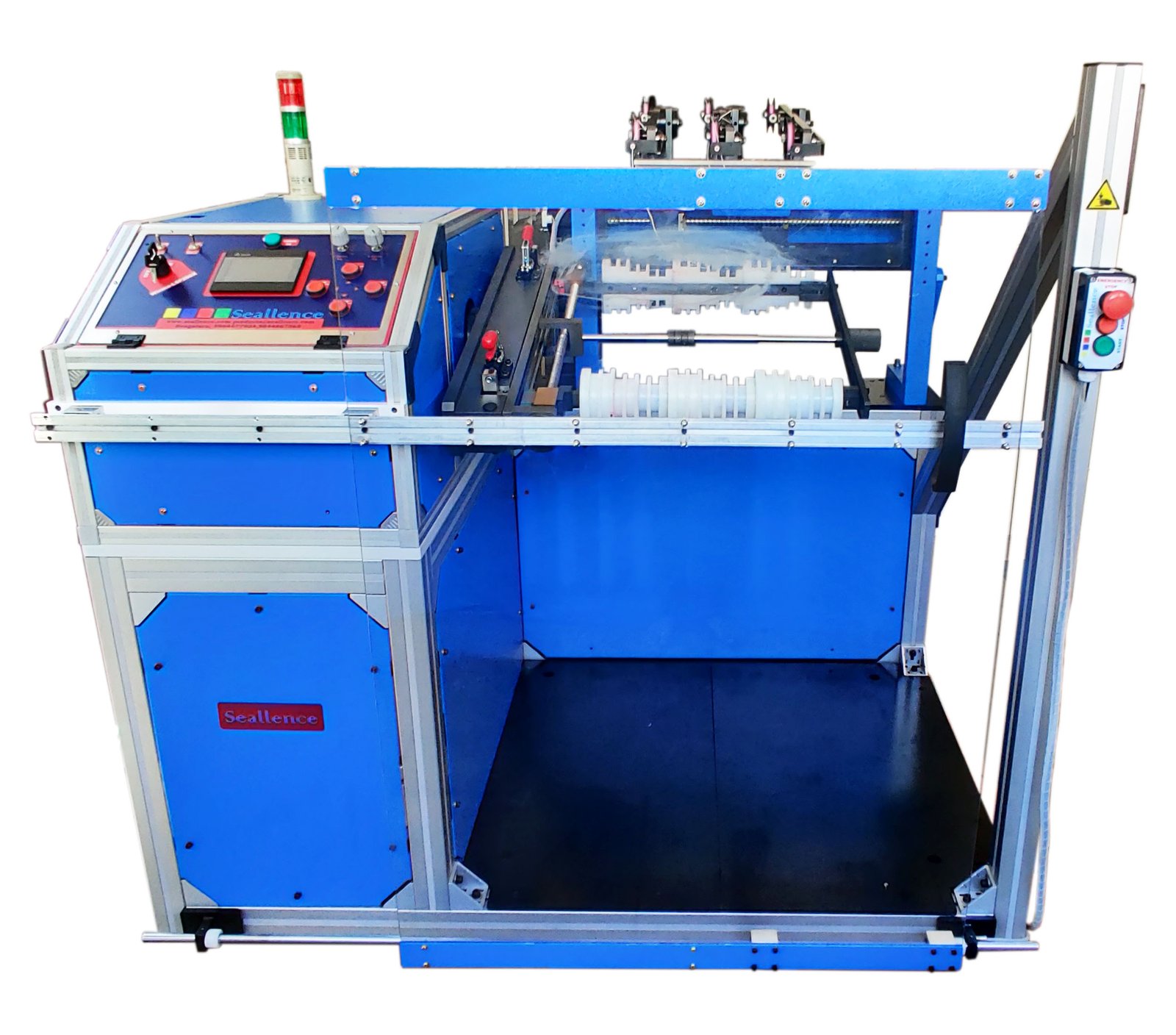

Winma-LSP200X
| Winma-LSP200X | |
|---|---|
| Swing Diameter | 600mm |
| Wire Size | 1mm 3 wires |
| Former Width | 200mm |
| Speed | 120 - 140 RPM |
| Power | 230VAC, 1.7KW |
| Wire guide | 1 or 2 or 3 |
