Mannual Winding, Wire Twisting, CRGO core Winding & Pin inserting Machine
Winma-MHT
| Winma_MHT | |
|---|---|
| Wire Size | 14 - 9 SWG |
| Speed | 2000 RPM |
| Power | 230VAC, 1.7KW |
Winma-LHT
| Winma-LHT | |
|---|---|
| Swing Diameter | 100mm |
| Strip Width | 20mm |
| Strip Thickness | upto 1.5mm |
| Speed | 150 RPM |
Wire Twisting Machine
| Wire Twisting Machine | |
|---|---|
| Wire Diameter | 0.5 sq mm |
| Speed | 1200 RPM |

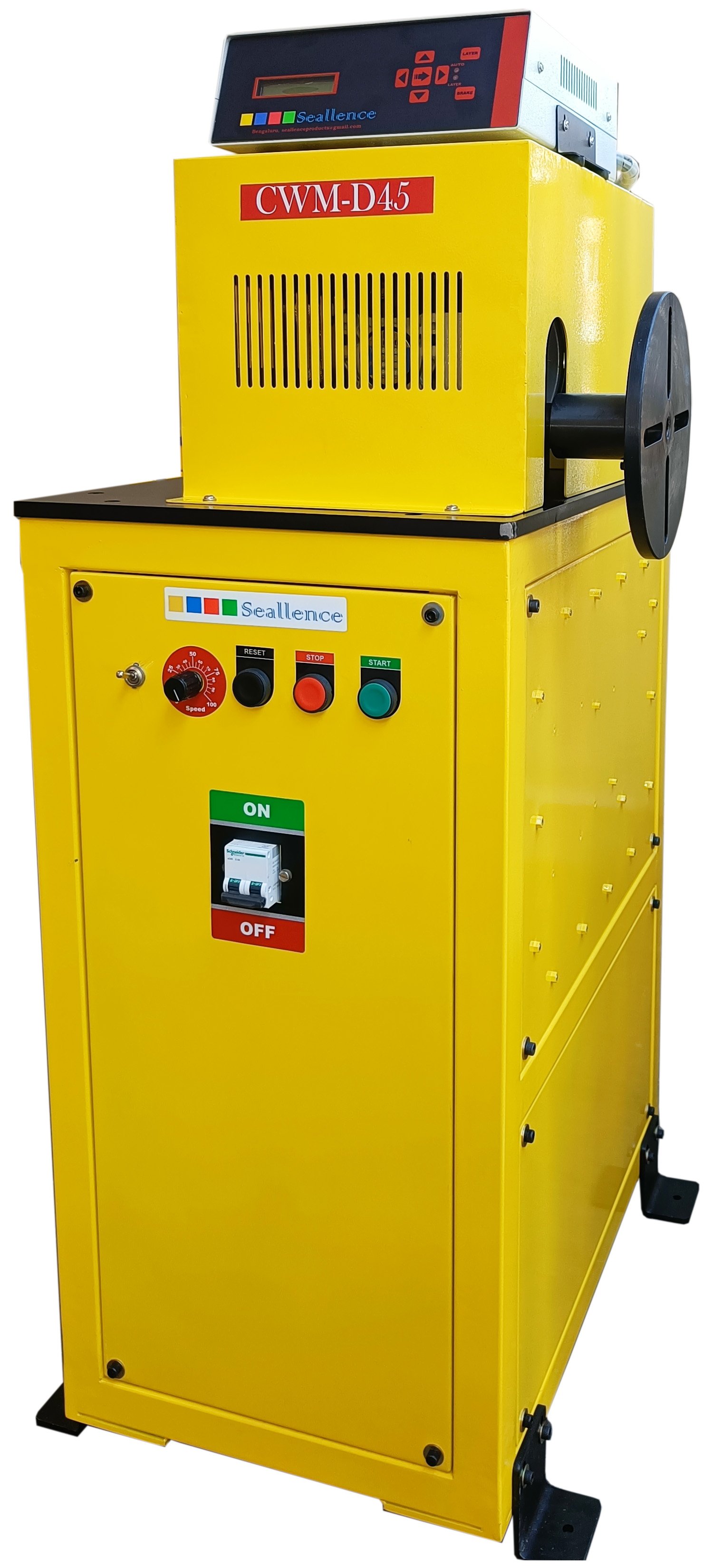

CWD-D45
| CWD-D45 | |
|---|---|
| Outer Diameter | 150mm |
| inner Diameter | 10mm |
| Height | 25mm |
| Strip thickness Width | 0.3mm |
| Speed | 150 RPM |
| Welding | Manual |
| Cutting | Manual cutter |
| Power | 230VAC, 1.5KW |
Pin Insertion Machine
| Pin insertion Machine | |
|---|---|
| Stations | 12 |
| Pin press & Bobbin Holding | pneumatic |
| Bobbin Placing & removal | Manual |
| Speed | 25-30 press/minute |
| Pressure | 5-6 Bar |
| Power | 230VAC, 350WW |
