Cutting Machine
.jpg)
SCUT-100N (Spool Holder)
| SCUT-100N | |
|---|---|
| Cutting length | 5 - 999mm max |
| Cutting Width | 100mm |
| Diameter | 8mm max |
| Folding | No |
| Speed | 70 - 80cut/min(50mm long) |
| tolorance | +/- 0.2mm |
| Power | 230VAC, 80W |
.jpg)
SCUT-100N (Motorised De-realer)
| with Motorised De-Reler | |
|---|---|
| Cutting length | 5 - 999mm max |
| Cutting Width | 100mm |
| Diameter | 8mm max |
| Folding | No |
| Speed | 70 - 80cut/min(50mm long) |
| tolorance | +/- 0.2mm |
| Power | 230VAC, 80W |

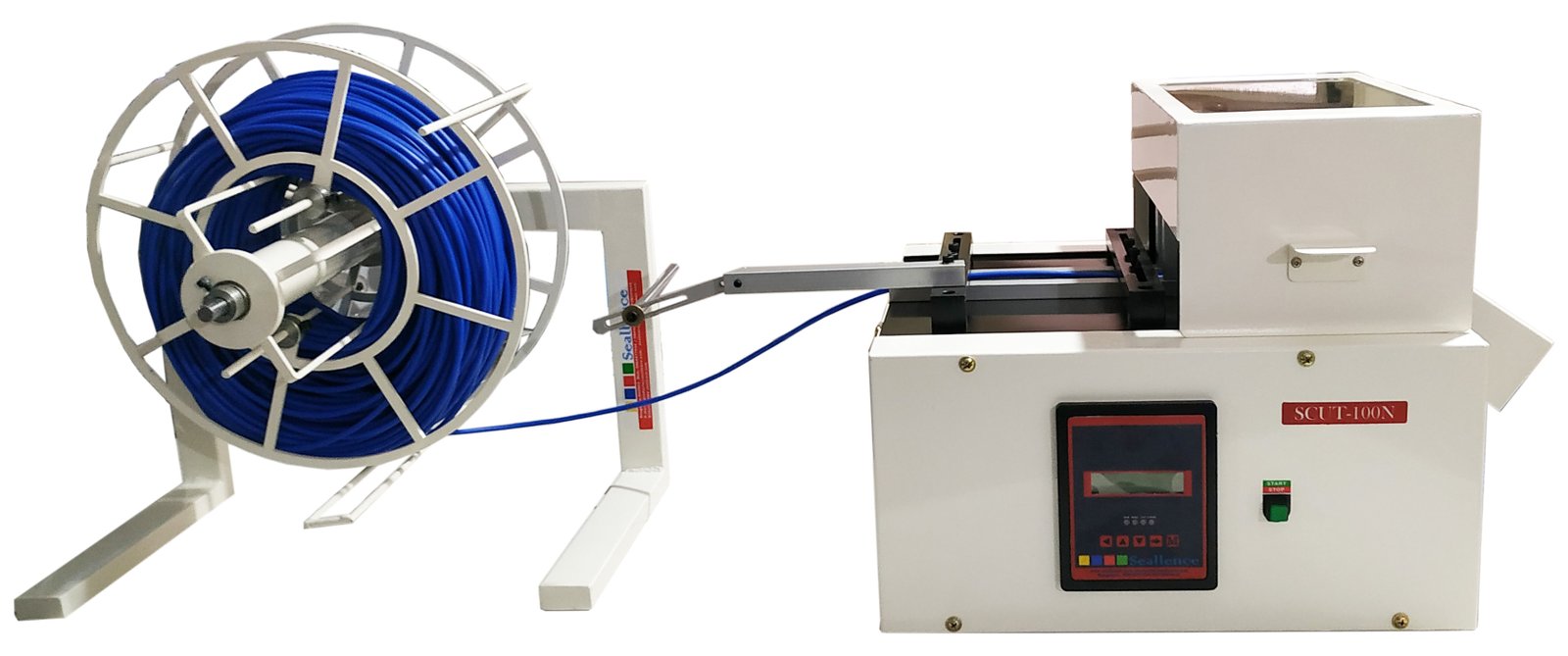

SCUT-100N De-reeler S
| with Mechanical De-Reler | |
|---|---|
| Cutting length | 5 - 999mm max |
| Cutting Width | 100mm |
| Diameter | 8mm max |
| Folding | No |
| Speed | 70 - 80cut/min(50mm long) |
| tolorance | +/- 0.2mm |
| Power | 230VAC, 100W |
SCUT-12l (pneumatic cutter)
| SCUT-100N | |
|---|---|
| Cutting length | 99.99inch max |
| Cutting Width | 100mm |
| Thickness | 0.5mm max |
| Speed | 70 - 80cut/min(50mm long) |
| tolorance | +/- 0.2mm |
| Power | 230VAC, 80W |
| Pressure | 5 - 6 Bar |
| Roller pressure can be adjustded using the knobPressure | |

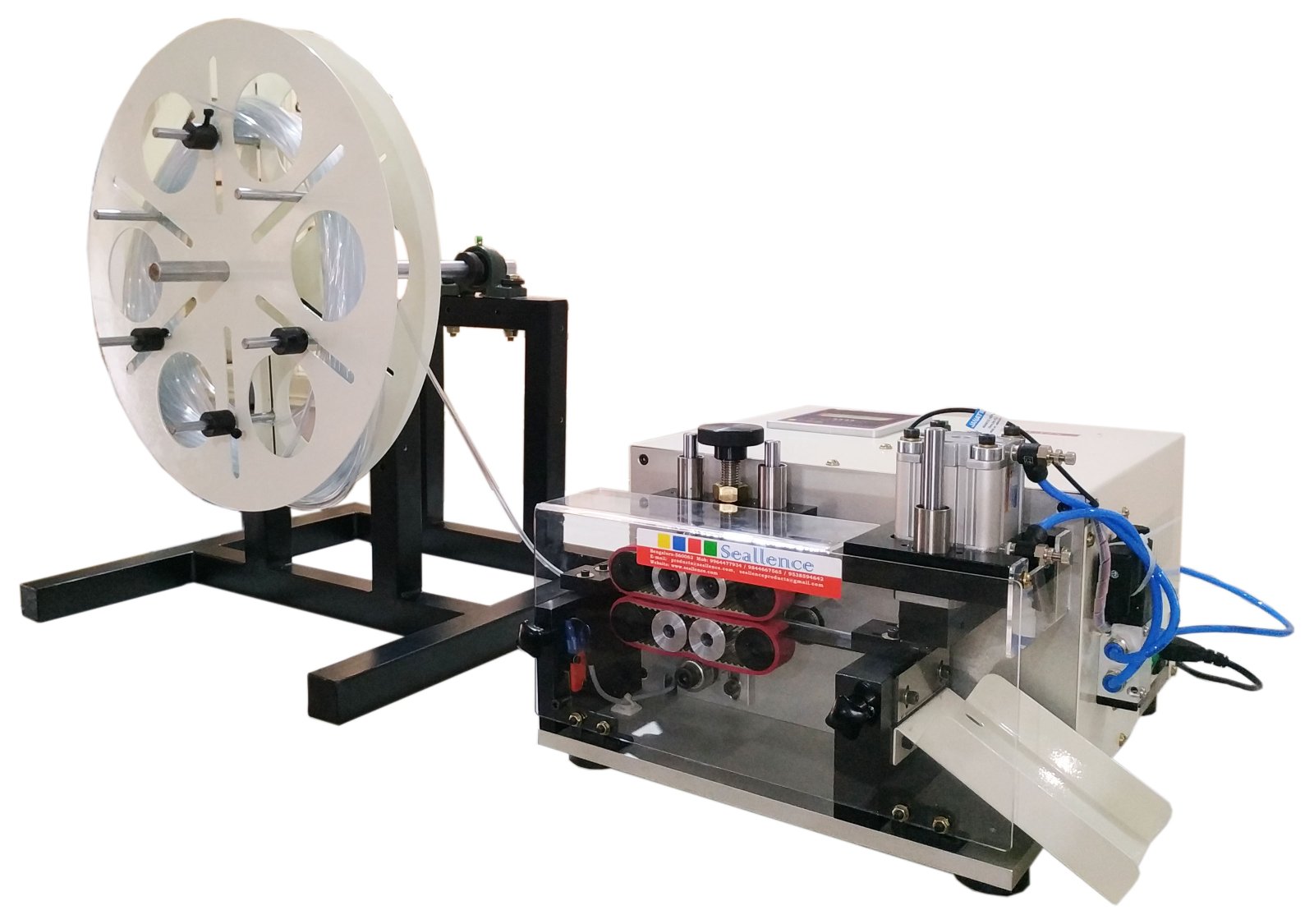

Sleeve Cutting Belt type S
| Belt drive Sleeve Cutting | |
|---|---|
| Cutting length | 5 - 9999mm max |
| Diameter | 8mm max |
| Folding | No |
| Speed | 120 - 150cut/min(50mm long) |
| tolorance | +/- 0.5mm |
| Power | 230VAC, 280W |
