Linear Winding Machine

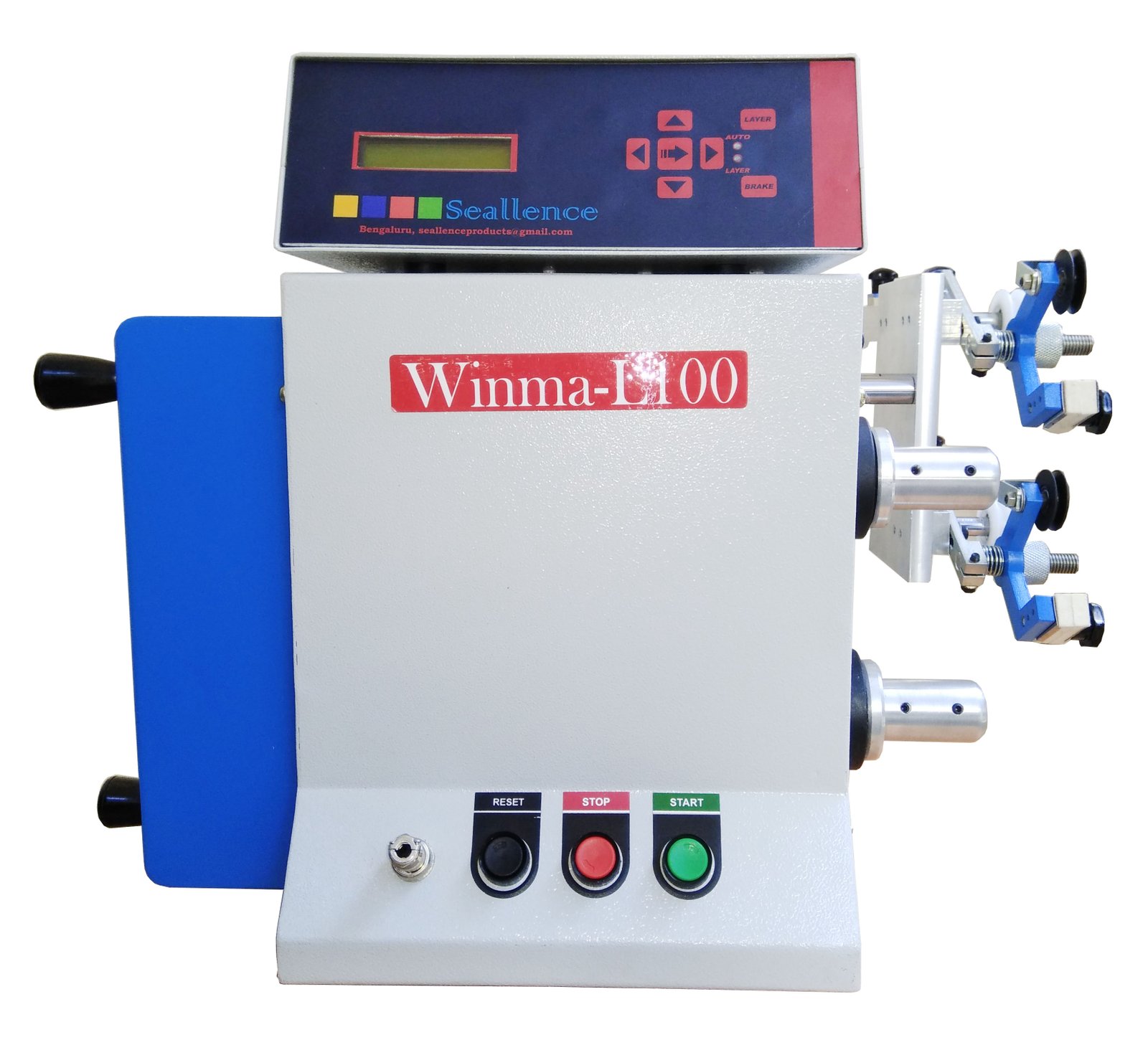

Winma-L100_AC_F
| One/Two Spindle Machine | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size |
a. 1 spindle: 45 - 20 SWG b. 2 spindle: 45 - 25 SWG |
| Bobbin Width | 99.9mm |
| Speed | 2000 RPM |
| Power | 230VAC, 220W |
Winma-L100_AC_F
| Bottom Spindle with Tape attachment | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size | 45 - 20 SWG |
| Bobbin Width | 99.9mm |
| Speed | 7000 RPM |
| Power | 230VAC, 220W |
Winma-L100 SMPS
| SMPS Winding Machine | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size | 38 - 21 SWG |
| Bobbin Width | 99.9mm |
| Speed | 2000 RPM |
| Power | 230VAC, 220W |

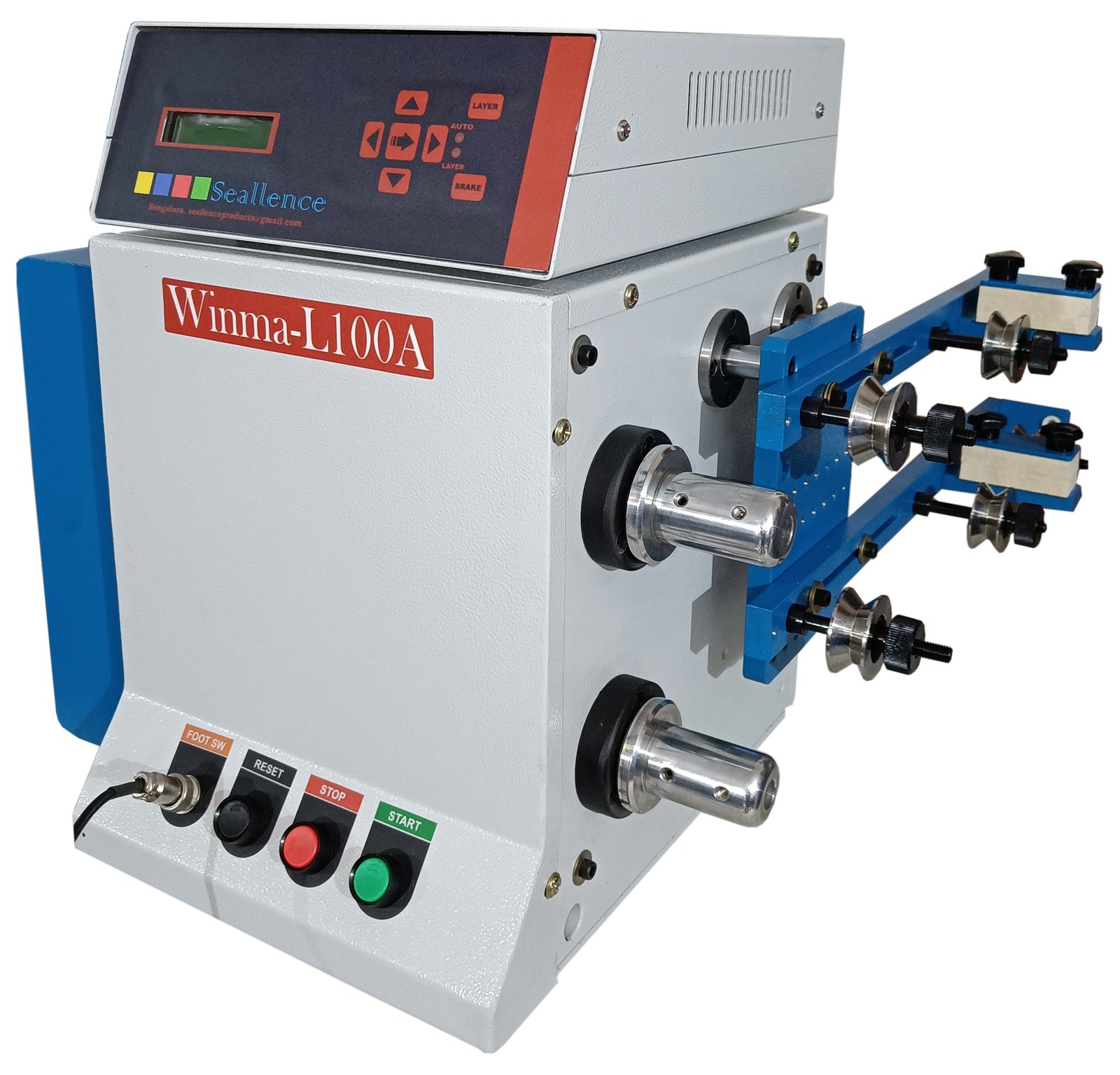

Winma-L100A
| One Two spindle High Torque | |
|---|---|
| Swing Diameter | 50mm |
| Wire Size |
a. 1 spindle : 45 - 14 SWG b. 2.spindle : 45 -16 SWG |
| Bobbin Width | 99.9mm |
| Speed | 2000 RPM |
| Power | 230VAC, 250W |

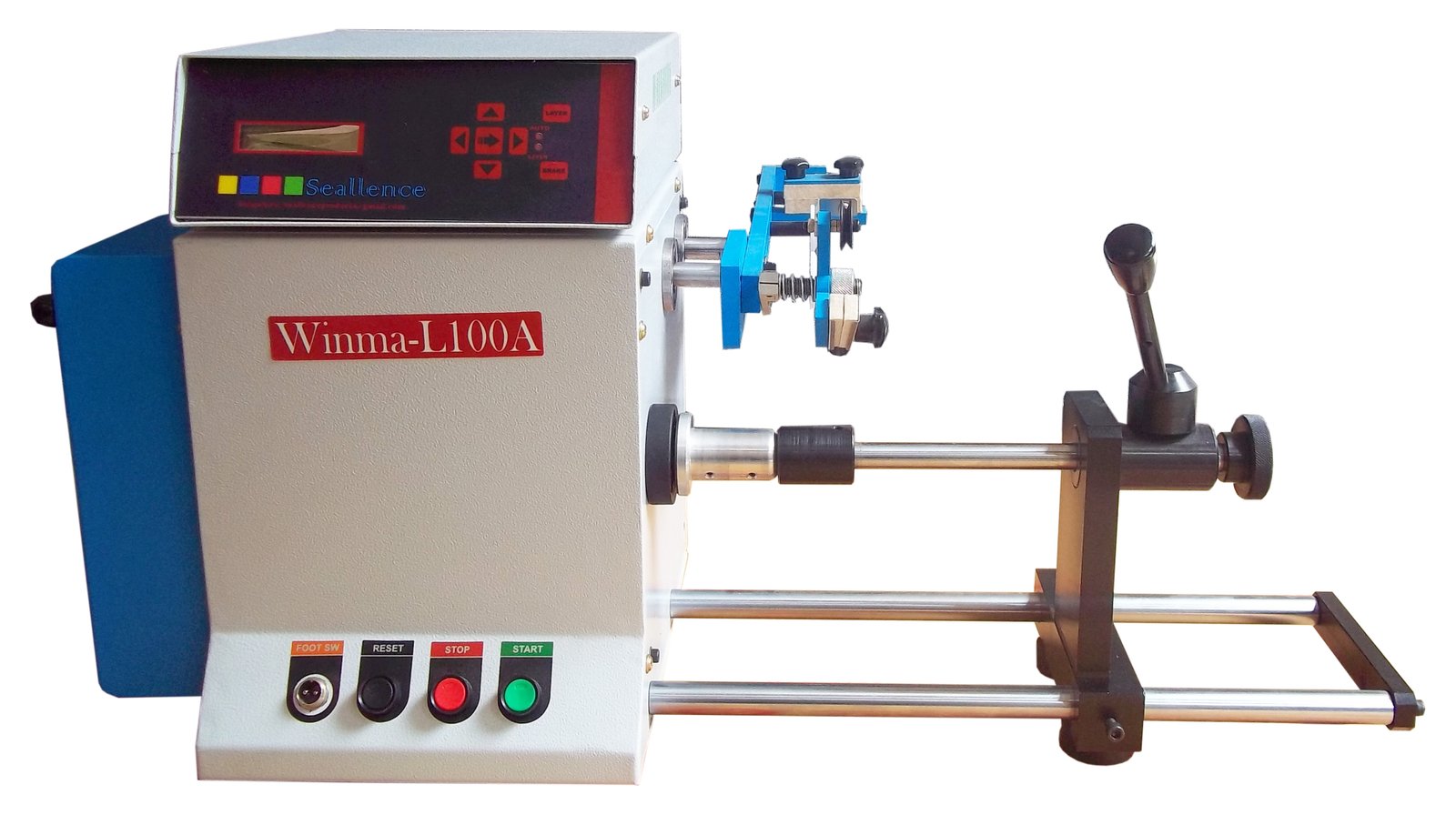

Winma-L100A Center
| Center Spindle with Tailstock | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size | 45 - 20 SWG |
| Bobbin Width | 99.9mm |
| Speed | 7000 RPM |
| Power | 230VAC, 220W |
Winma-L100 Multi Bobbin Front
| Center Spindle Multi Bobbin | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size | 45 - 20 SWG |
| Bobbin Width | 99.9mm |
| Speed | 7000 RPM |
| Power | 230VAC, 220W |

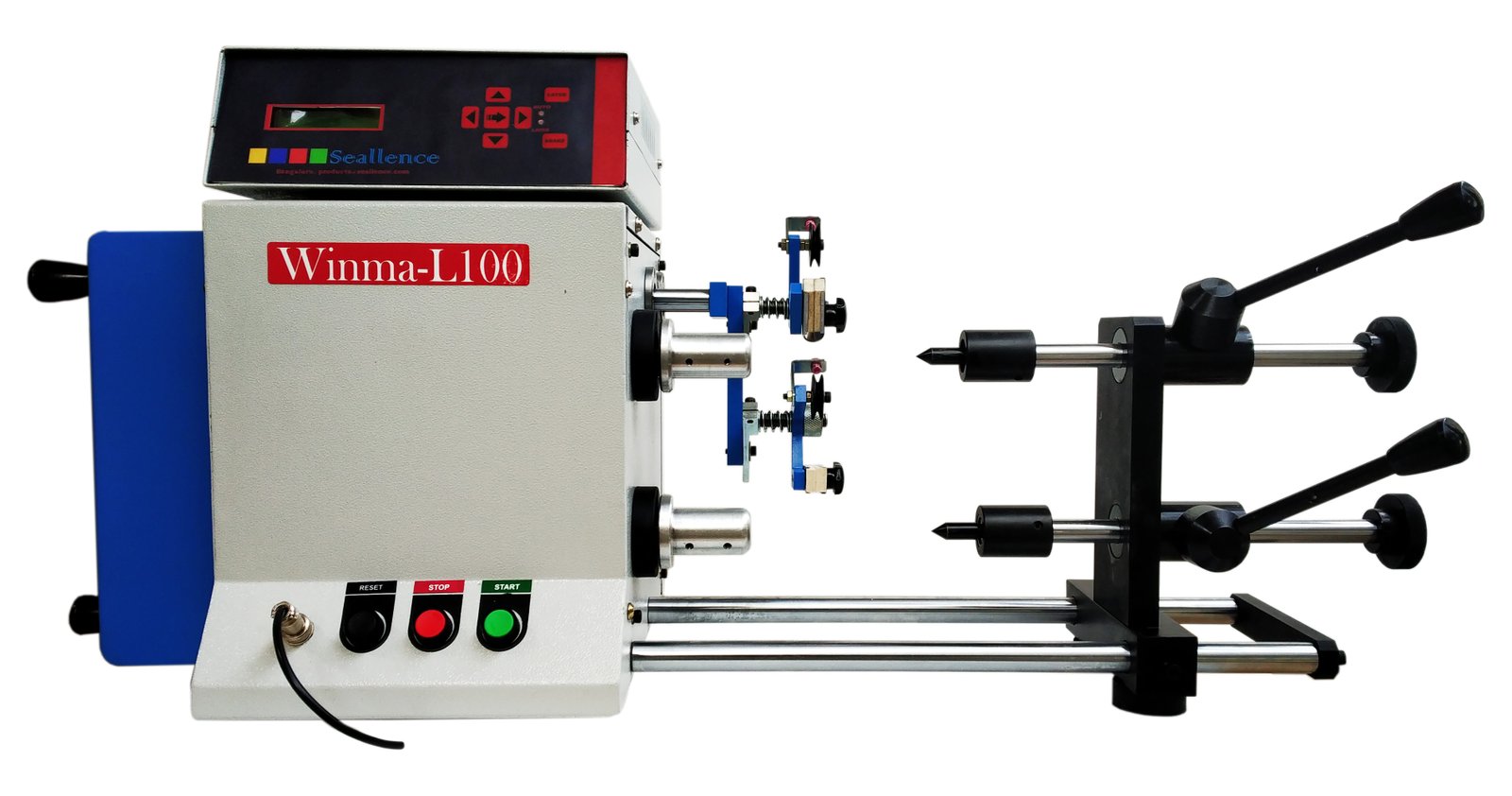

Winma-L100TS
| one/Two Spindle with Tailstock | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size |
a. 1 spindle : 45 - 20 SWG b. 2 spindle : 45 - 25 SWG |
| Bobbin Width | 99.9mm |
| Speed | 7000 RPM |
| Power | 230VAC, 220W |

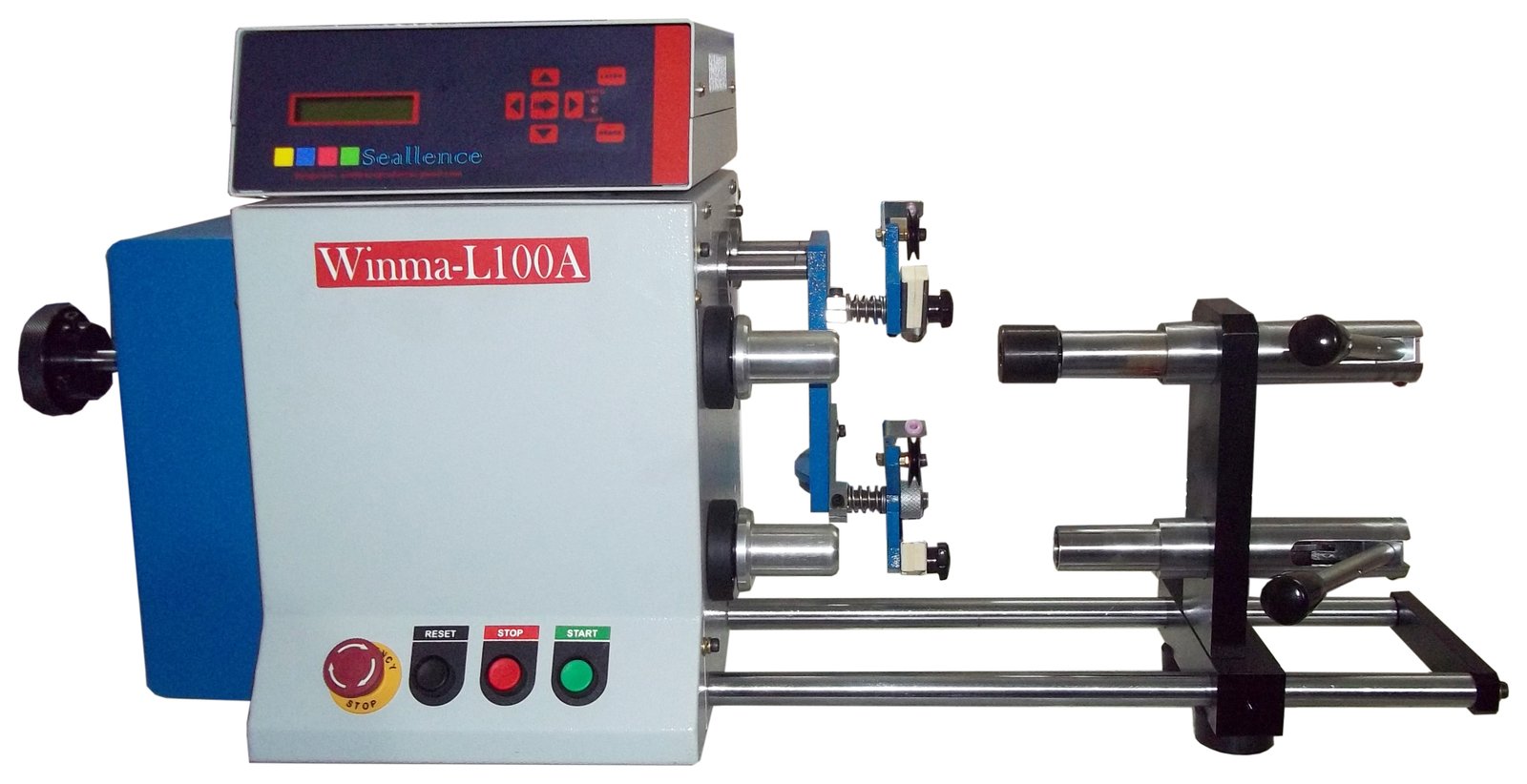

Winma-L100A TS EMRG
| one/Two Spindle with Tailstock | |
|---|---|
| Swing Diameter | 100mm |
| Wire Size |
a. 1 spindle : 45 - 20 SWG b. 2 spindle : 45 - 25 SWG |
| Bobbin Width | 99.9mm |
| Speed | 7000 RPM |
| Power | 230VAC, 220W |
